Electric Motor Parameters Webapp

Explanation:

AC motors are electric motors which are powered by alternating current (AC). They are used to convert electrical energy into mechanical energy in order to do work in a system. Specifically, rotational energy is produced by utilizing the force of magnetic fields induced by alternating current flowing through electric coils. AC motors are used to provide power for a wide variety of systems, from small to large industrial machinery.

The majority of AC motors consist of two main components, a stator and a rotor. The stator is basically a metal ring with slots which hold coils of insulated wire containing a steel core. AC current runs through these wires to produce a rotating magnetic field. The rotor is a rod/shaft with a stack of evenly spaced conductor bars at its core. During operation the rotor core interacts with the magnetic field generated by the stator windings, causing the rotor to turn and produce torque. All these components are typically housed within a casing or enclosure designed to protect the motor and control heat generation. Motors also consist of a mount used to hold and stabilize the motor frame.

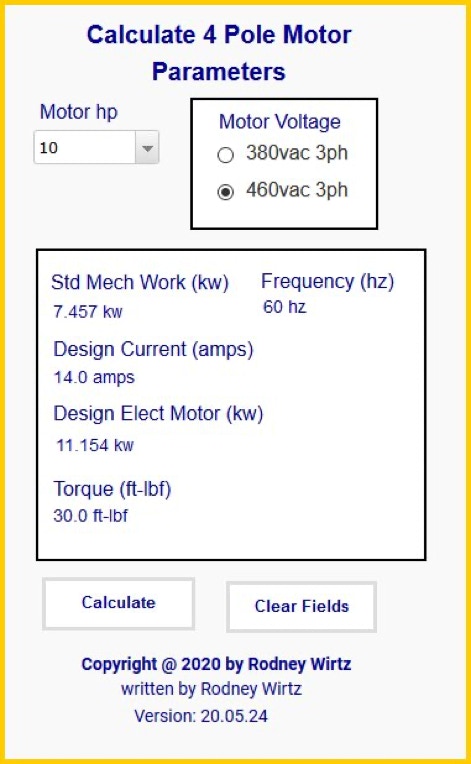

This program calculates the electrical and mechanical parameters for a broad range (in terms of hp) of induction (squirrel cage) motors.
